2012 Harley-Davidson XL1200X 48 Review | Picture, Price and Specs

2012 Harley-Davidson XL1200X 48 Review | Picture, Price and Specs - Harley-Davidson ® motorcycles are unlike any other bike on the road. There is a balance to them. The steering, maneuverability, it's all in concert. And every Harley-Davidson ® model is different from swinging a unique driving experience for each individual no matter what bike they agreed to create their leg over. Let's face it, we are not where we are, they get by like everyone else.

New Michelin ® Scorcher ™ tires provide superior performance, sensational grip, durability and excellent handling expected on a race-bred bike. The exclusive deep-cut tread design improves grip and water evacuation capability. Grip performance and durability of the tire rubber compounds by the greater use of the latest generation of Michelin synthetic polymers. Under the rear rubber, aramid belts are used to make your trip to inspire confidence in the handling contributes to the stabilization.

With the customized front-mounted controls on the 2012 Harley-Davidson XL1200X 48, you can start out a little and stretch your legs for the ultimate cruising around town or across the state line. It's time to take the open road as you were on a two-wheeled machine built to outperform the rest is meant.

2012 Harley-Davidson XL1200X 48 Specifications
U.S. MSRP pricing: Vivid Black $ 10,499, $ 10,789 USD Solids

Size
Length of 88.6 inches (2250 mm)
Overall width 32.7 inches (831 mm)
Overall height 42.0 inches (1067 mm)
Seat height:
- Laden2 26.0 inches (660 mm)
- Empty weight 26.8 inches (681 mm)
Ground clearance 3.9 inches (99 mm)
Rake (steering head) 30 °
Fork Angle 30 °
Trail 4.2 in. (107 mm)
Wheelbase 59.8 inches (1519 mm)
Tires (Michelin ® Scorcher ® "31" front and rear):
- Front - Scorcher ® "31" 73H 130/90B16
- Rear - Scorcher ® "31" 77H 150/80B16
Fuel Tank Capacity 2.1 gal (7.9 L) (warning light at approximately 0.65 gal.)
Oil volume (w / filter) 2.8 qts. (2.6 l)
Transmission capacity of 1.0 qt. (0.95 L)

Weight:
- When 545 pounds shipping. (247.2 kg)
- In running order £ 567. (257.2 kg)
- Max. Total weight of 1000 pounds. (453.6 kg)
- Permissible axle load
- Front £ 335. (152.0 kg)
- Rear 665 pounds. (301.6 kg)

Engine
Engine air-cooled, Evolution ®
Valves, pushrods, overhead valves with hydraulic, self-adjusting lifters, two valves per cylinder
Bore x Stroke 3.812 in. x 3.5 in. (88.9 mm x 96.8 mm)
Displacement 73.3 cu. in. (1200 cc)
Compression ratio 9.7:1
Electronic Sequential Port Fuel System3 Fuel Injection (ESPFI)
Cartridge type air cleaner paper
Dry sump lubrication system

Drivetrain
Primary Drive Chain, 57/38 Relation
Final Drive Belt, 68/29 ratio
Multi-plate clutch, wet
Transmission 5-speed
Ratios (total): U.S.
- 1 9.315
- 2 6.653
- 3 4.948
- 4 4.102
- 5 3.517

Chassis
Frame structural steel, tubular frame; circular cross section; cast nodes
Swingarm Mild steel, rectangular tube section, stamped junctions, MIG welded
39 mm front fork
Damper struts, adjustable spring preload
Wheels4: Black Steel Laced
- Front 16 in. x 3 in. (406 mm x 76 mm)
- Rear 16 in. x 3 in. (406 mm x 76 mm)

Brakes:
- Caliper Type Dual-piston front calipers, single piston rear brake caliper
- Rotor (diameter x width): Patented, uniform expansion rotors
- Front 11.5 in. x 0.2 in. (292.1 mm x 5.1 mm)
- Rear 10.24 in. x 0.28 inches (260.1 mm x 7.1 mm)

Travel:
- Front Wheel 3.62 in. (92 mm)
- Rear wheel 1.63 in. (41 mm)

Performance
Torque5 engine (per J1349):
- North America 79 ft. lbs. @ 4000 rpm (107 Nm @ 4000 rpm)
Maximum slope (per J1168):
- Right 27.8 °
- Left 26.1 °

Fuel Economy6
(EPA urban / highway test) 48 mpg (4.9 l/100 km)

Electric
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 12 amp / hour, 200 cca
Charging Single-phase, 30-A (357W@13.5V, 2000 rpm, 405W max power@13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
- Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
- 28W indicators with automatic reset
- Tail Section / stop / turn signal lamp per 8W/28W
- Indicator lamps: high beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security System7 (optional)

Warranty
Warranty8 24 months (unlimited mileage)
Service Interval9 first 1000 miles (1600 km), every 5,000 miles (8,000 km) thereafter

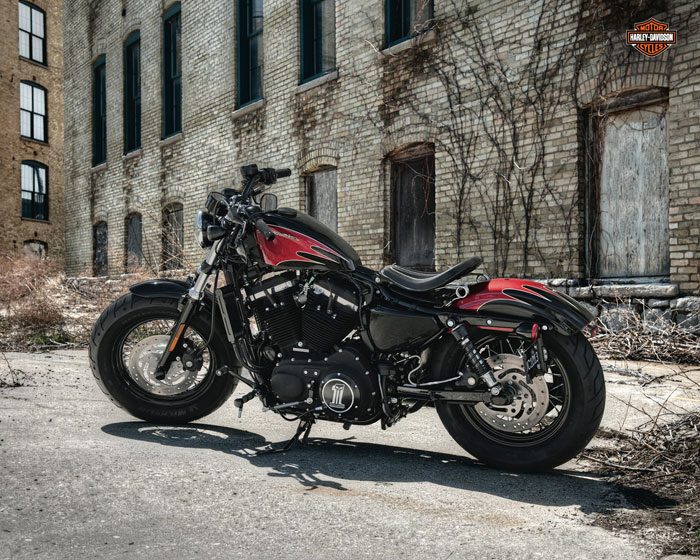

2012 Harley-Davidson XL1200X 48 Pictures
