2010 Aprilia Dorsoduro 750 Motorcycle
2010 Aprilia Dorsoduro 750 is a vehicle that combines supersports and supermotards type. This is a special vehicle and one of the best issued by the aprilia. Thus the result of a strong vehicle and a sophisticated technology and refinery performance and technology, special, extreme and elite bike is capable of lifting the rider to ride with the speed and convenience. 2010 Aprilia Dorsoduro 750 has a machine with a capacity of 750cc, Aprilia V90 four stroke longitudinal 90 ° V twin. Liquid cooling. Double overhead camshaft with mixed gear / chain drive; four valves per cylinder. In APRILIA DORSODURO 750 machines used to combine the technical solutions that most advanced found on any bike of its kind. For the chassis, 2010 Aprilia Dorsoduro 750 uses a chassis yangb strong but lightweight and aerodynamic systems must have that can make this vehicle a fast, agile, nimble in corners. If you want to have this vehicle better you read the information below.

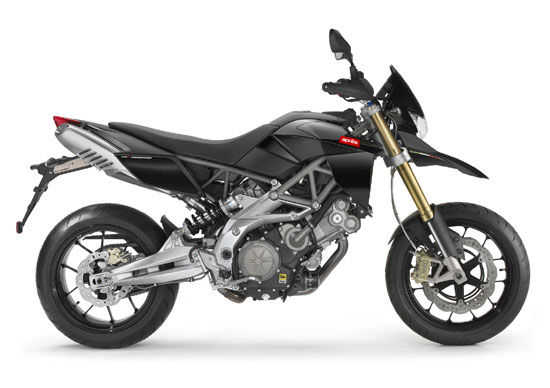

2010 Aprilia Dorsoduro 750 Motorcycle
2010 Aprilia Dorsoduro 750 Motorcycle
2010 Aprilia Dorsoduro 750 Motorcycle
2010 Aprilia Dorsoduro 750 - Specifications
MSRP: $9,599 USD
Engine: Aprilia V90 four stroke longitudinal 90° V twin. Liquid cooling. Double overhead camshaft with mixed gear/chain drive; four valves per cylinder.
Fuel: Unleaded petrol
Bore x Stroke: 92 x 56,4 mm
Total displacement: 749,9 cc
Compression ratio: 11 : 1
Maximum power at the crank: 67.3 kW (92 HP) at 8750 rpm.
Maximum torque at the crank: 8.4 kgm (82 Nm) at 4500 rpm.
Fuel system: Integrated engine management system. Electronic fuel injection with ride-by-wire electronic throttle control.
Ignition: Digital electronic, integrated in the fuel injection system.
Starting: Electric
Exhaust: Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe.
Generator: 450 W at 6000 rpm.
Lubrification: Wet sump.
Gear box: Six speed. Transmission ratios: 1st 14/36 (2.57) 2nd 17/32 (1.88) 3rd 20/30 (1.5) 4th 22/28 (1.27) 5th 23/26 (1.13) 6th 24/25 (1.04)
Clutch: Hydraulically operated multi-plate wet clutch.
Primary drive: Spur gears. Transmission ratio 38/71 (1.87).
Final drive: Chain. Transmission ratio 16/46.
Frame: Modular steel trellis secured to aluminium side plates by high strength bolts. Detachable rear frame.
Front suspension: 43 mm upside-down fork. 160 mm wheel travel.
Rear suspension: Aluminium alloy swingarm.
Shock absorbers: Hydraulic shock absorber adjustable in spring preload and rebound damping. Wheel travel: 160 mm
Brakes: Front: Double stainless steel floating disc (Ø 320 mm). Four-piston radial calipers. Metal braided brake line. Rear: Stainless steel disc (diam. 240 mm) with single piston caliper. Metal braided brake line.
Wheels: Aluminium alloy. Front: 3.50 x 17". Rear: 6.00 x 17".
Tyres: Radial tubeless. Front: 120/70 ZR 17. Rear: 180/55 ZR 17.
Dimensions: Overall length: 2216 mm Overall width: 905 mm (at handlebars) Overall height: 1185 mm (at instruments) Seat height: 870 mm Wheelbase: 1505 mm Trail: 108 mm Rake angle: 26°
Dry weight: 186 kg
Fuel tank capacity: 12 litres (autonomy > 200 km)
Feature on 2010 Aprilia Dorsoduro 750 Motorcycle
- 90° V twin engine with four-valve heads, double overhead cam and liquid cooling;
- modular steel trellis and aluminium alloy frame for extremely light weight and high torsional rigidity;
- also available in a restricted 25 kW version
- tri-Map second generation ride-by-wire technology;
- latest generation Continental two channel ABS
- mixed gear and chain timing drive
- aluminium alloy swingarm with laterally offset monoshock
- radial front brake calipers combined with 320 mm wave discs
- electronic fuel injection with the latest generation injectors
- fully adjustable 43 mm upside down fork
ENGINE: A STATE-OF-THE-ART TWIN
- The Aprilia Dorsoduro 750 is also available, right from its introduction, in a restricted 25 kW version. The use of a ride-by-wire electronic throttle has allowed Aprilia to avoid cutting power right across the range, as happens with less advanced restricted versions. Instead, the power curve of the restricted Dorsoduro is identical to that of its full-power sister right up to the point where the permitted power limit is reached. The 25 kW Dorsoduro 750 therefore delivers far superior acceleration to the equivalent models of the competition, to the benefit of riding satisfaction and pleasure.
- The electronic engine management on the Dorsoduro 750's engine leads the field in technology and performance. The Dorsoduro features a second generation electronic throttle with Tri-Map selectable triple mapping.
Three performance modes, Sport, Touring and Rain, can be selected from a switch on the handlebars (with the throttle closed for safety reasons). The Dorsoduro changes its character radically, depending on what mode you select. Sport mode gives you aggressive instant power; Touring mode gives you a smoother action, better suited to relaxed long distance riding; and Rain mode gives you ultimate safety slippery surfaces.
- Thanks to its advanced electronic and mechanical technology, the Aprilia V twin engine develops 92 HP at 8,750 rpm and a maximum torque of 82 Nm at 4,500 rpm. These figures enable the Dorsoduro to compete directly with motorcycles powered by far bigger engines.
- Numerous improvements have been made to the Aprilia 750 cc, 90° V twin engine, which now features mapping specially developed to bring out the Dorsoduro's aggressive character.
Improvements have been made to various areas of the 749.9 cc engine with its bore and stroke of 92 x 56.4 mm. As a result the electronic and mechanical content of this V twin engine sets new standards not only for engines of this size but for many far larger units too.
- The Tri-Map electronic throttle also means smoother, more consistent power thanks to more accurate and precise throttle control based on parameters including engine speed, gear selection, air flow, throttle position and temperature.
Whatever mapping you select, the engine is always ready to deliver the best possible performance in terms of acceleration and rev range, giving you an amazingly satisfying and entertaining ride.
The exhaust is made entirely from stainless steel. The collector pipes meet in a single silencer under the seat before splitting again into two tail pipes. The large volume of the exhaust system also aids engine breathing and boosts efficiency.
