2007 YAMAHA WR 250 F
Motorcycle pictures, review and specifications

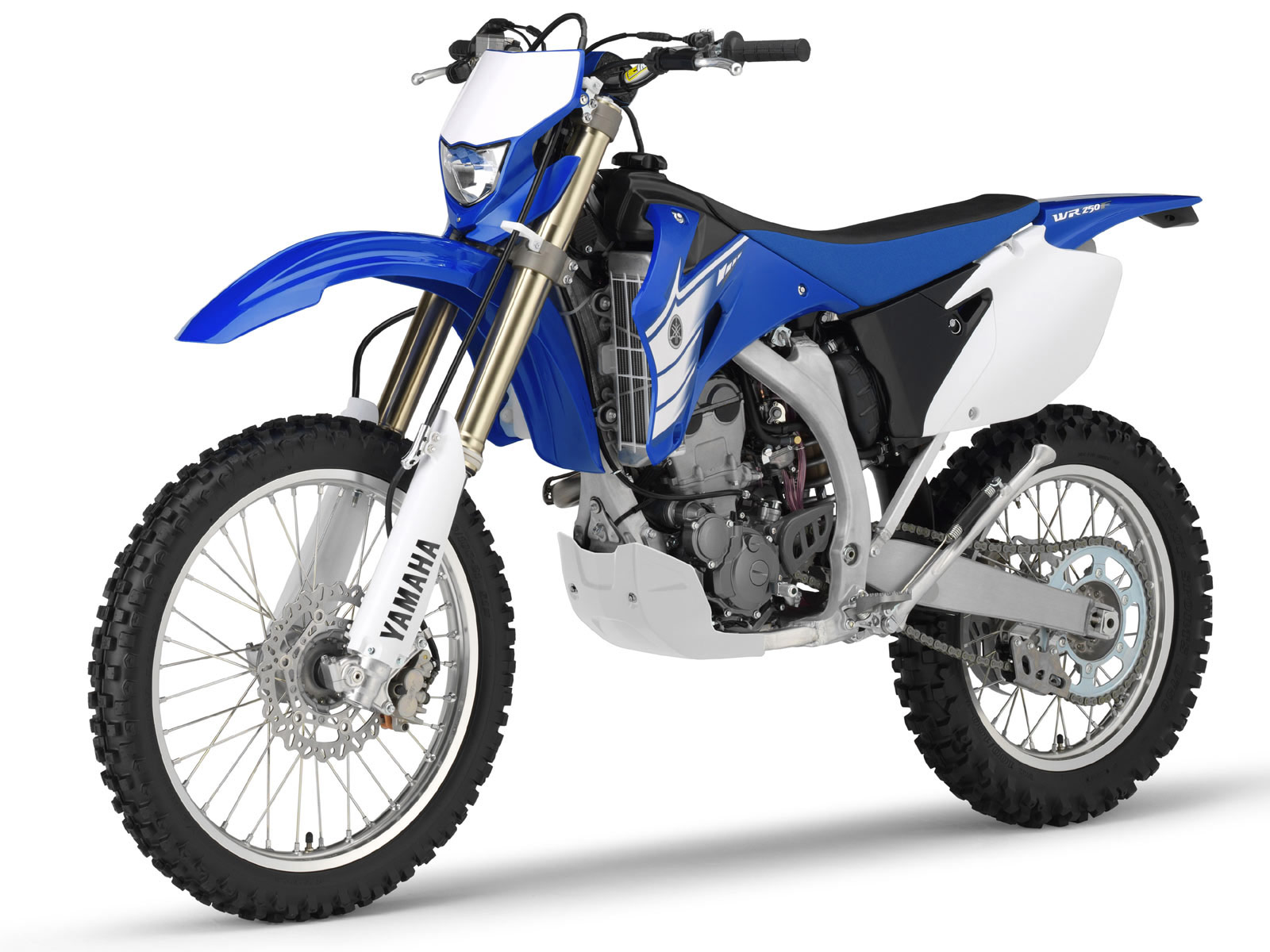

2007 YAMAHA WR 250 F
Click Thumbnail to download (size 1600 x 1200 pixels)
Click Thumbnail to download (size 1600 x 1200 pixels)
Specifications
Model: Yamaha WR 250 F
Year: 2007
Category: Enduro / offroad
Rating: 76.3 out of 100.
Engine and transmission
Displacement: 250.00 ccm (15.26 cubic inches)
Engine type: Single cylinder
Stroke: 4
Compression: 12.5:1
Bore x stroke: 77.0 x 53.6 mm (3.0 x 2.1 inches)
Fuel system: Carburettor
Fuel control: DOHC
Ignition: CDI
Cooling system: Liquid
Gearbox: 5-speed
Transmission type final drive: Chain
Physical measures
Dry weight: 106.0 kg (233.7 pounds)
Seat height: 980 mm (38.6 inches) If adjustable, lowest setting.
Overall height: 1,300 mm (51.2 inches)
Overall length: 2,164 mm (85.2 inches)
Overall width: 826 mm (32.5 inches)
Ground clearance: 366 mm (14.4 inches)
Wheelbase: 1,478 mm (58.2 inches)
Chassis and dimensions
Front suspension: Telescopic Fork, Coil spring/oil damper, 11.8´
Rear suspension: Swingarm (link, suspension), Coil spring/gas-oil damper, 12.2´
Front tyre dimensions: 80/80-M21
Rear tyre dimensions: 100/90-M18
Front brakes: Single disc
Front brakes diameter: 250 mm (9.8 inches)
Rear brakes: Single disc
Rear brakes diameter: 245 mm (9.6 inches)
Other specifications
Fuel capacity: 7.94 litres (2.10 gallons)
Model: Yamaha WR 250 F
Year: 2007
Category: Enduro / offroad
Rating: 76.3 out of 100.
Engine and transmission
Displacement: 250.00 ccm (15.26 cubic inches)
Engine type: Single cylinder
Stroke: 4
Compression: 12.5:1
Bore x stroke: 77.0 x 53.6 mm (3.0 x 2.1 inches)
Fuel system: Carburettor
Fuel control: DOHC
Ignition: CDI
Cooling system: Liquid
Gearbox: 5-speed
Transmission type final drive: Chain
Physical measures
Dry weight: 106.0 kg (233.7 pounds)
Seat height: 980 mm (38.6 inches) If adjustable, lowest setting.
Overall height: 1,300 mm (51.2 inches)
Overall length: 2,164 mm (85.2 inches)
Overall width: 826 mm (32.5 inches)
Ground clearance: 366 mm (14.4 inches)
Wheelbase: 1,478 mm (58.2 inches)
Chassis and dimensions
Front suspension: Telescopic Fork, Coil spring/oil damper, 11.8´
Rear suspension: Swingarm (link, suspension), Coil spring/gas-oil damper, 12.2´
Front tyre dimensions: 80/80-M21
Rear tyre dimensions: 100/90-M18
Front brakes: Single disc
Front brakes diameter: 250 mm (9.8 inches)
Rear brakes: Single disc
Rear brakes diameter: 245 mm (9.6 inches)
Other specifications
Fuel capacity: 7.94 litres (2.10 gallons)
.
